Grinding Cylpebs Supplier OEM & ODM Manufacturing
- Model
- Casting type
Item specifics
- Categories
- Casting
- Product name
- Grinding Cylpebs
- Steel material
- Ferrochromium
- Volume Hardness
- 60-65HRC
- Diameter
- Φ20-Φ55
- Breakage rate
- 1% Max
- Packing
- 1000KG BAG/850-900KG DRUM
- Delivery time
- within 20 days after payment receipt
- Free sample
- yes
Review
Description

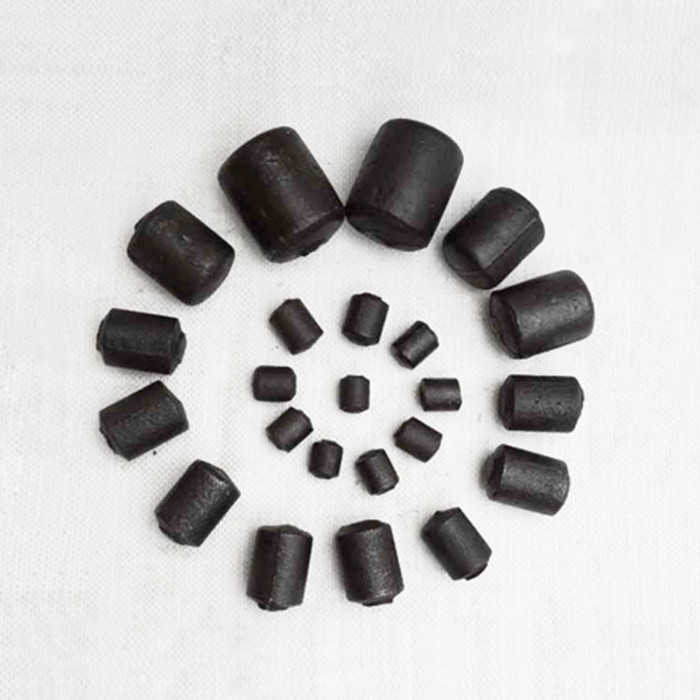

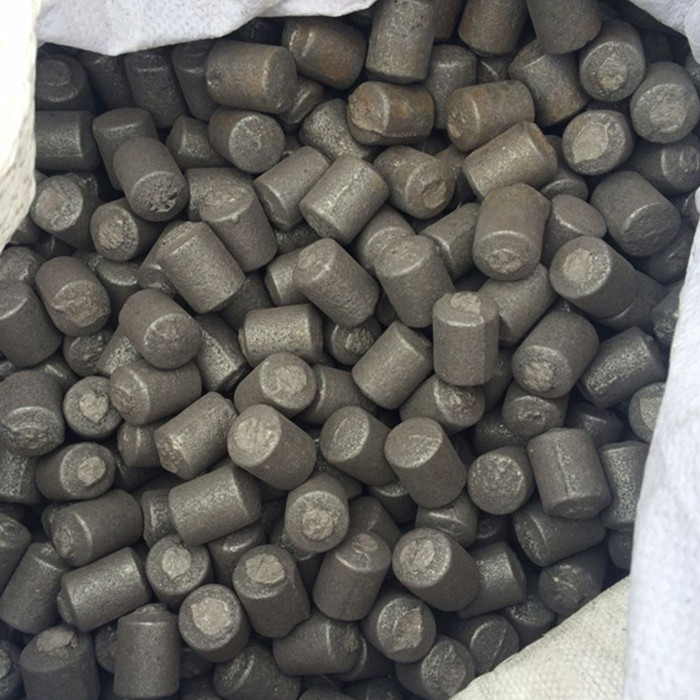

What is Grinding Cylpebs
Casting is the process of pouring molten metal into a mold and then cooling and solidifying it to obtain parts with the desired shape and performance.
Core Features
1.Hardness and Toughness: Generally falls is more than 60 HRC (Rockwell Hardness Scale)
2.Diameter: Grinding Cylpebs are available in Φ20-Φ55mm diameter sizes.
3,Main Material Types:
High Chrome:Cr13 Cr15 Cr20;
Middle Chrome:Cr3~Cr7;
Low Chrome:Cr2;
Grinding Cylpebs
1）Uniform Hardness（from surface to core）
2）Unbreakable
3）High Wear Resistance
4）High Impact Value
5）High Combined Efficiency of Grinding Mill
Grinding Cylpebs specifications:
| Size | Dia Tolerance | Rate Out of Round | Length Tolerance |
| (mm) | (mm) | (mm) | (mm) |
| φ20×25 | +1.2/-1.0 | ≤5 | +1.5/-1.5 |
| φ25×30 | +1.5/-1.5 | ≤5 | +2.0/-2.0 |
φ30×35 | +1.5/-1.5 | ≤5 | +2.0/-2.0 |
φ30×40 | +1.5/-1.5 | ≤5 | +2.0/-2.0 |
φ35×40 | +2.0/-2.0 | ≤5 | +2.5/-2.5 |
φ35×45 | +2.0/-2.0 | ≤5 | +2.5/-2.5 |
φ40×50 | +2.0/-2.0 | ≤5 | +2.5/-2.5 |
φ40×55 | +2.0/-2.0 | ≤5 | +2.5/-2.5 |

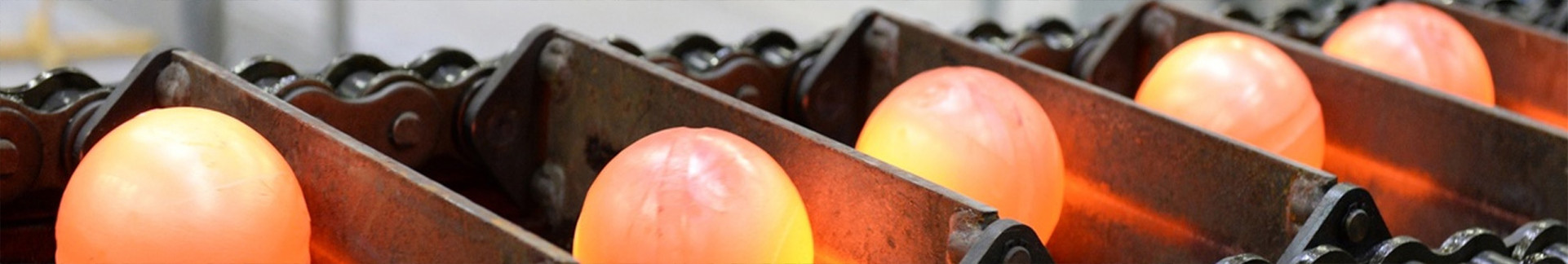

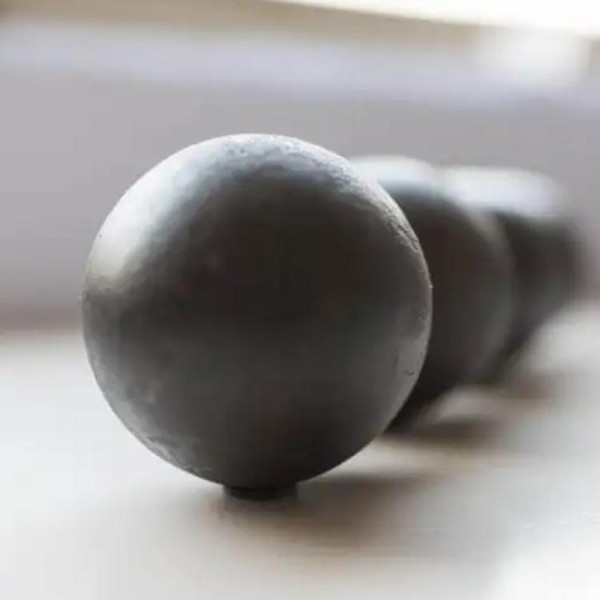

Forging (Rolling) Steel Balls specifications:

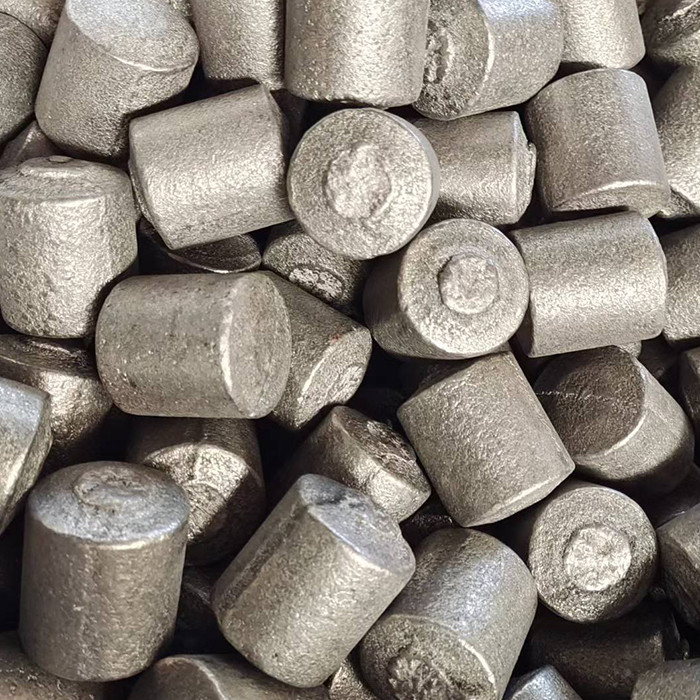

Grinding Cylpebs Supplier
Grinding Rods for Mining

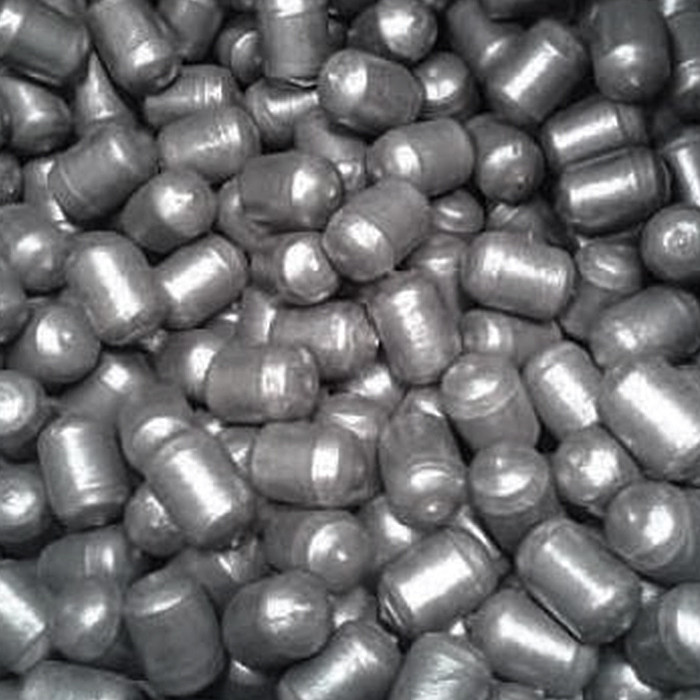

Cast Grinding Cylpebs
Application
Black and nonferrous metal mines, chemical engineering, new building materials, refractory materials, chemical fertilizer, cement, silicate products, glass ceramics and so on.
1）Mining and Mineral Processing
Grinding Cylpebs has been designed to effectively liberate a wide variety of minerals such as gold, silver, lead, zinc, copper, iron during the comminution process.
2）Cement Bulding Materials
Grinding Cylpebs offers optimal performance for the dry grinding of limestone and cement in all types of ball milling common to the cement industry. The product is typically tempered for dry cement applications.
Finish milling – Product can be designed to effectively grind clinker in dual or mono chamber cement mills. Optimised ball charges can ensure proper grinding efficiency to fully utilise the mill power to produce the required Blaine.
Raw milling – Grinding Cylpebs offer a longer lasting ball for dry or wet raw milling of the kiln feed material.
Coal milling – Corrosive grinding conditions in milling of fuel materials for the kiln can be better handled by our more durable Grinding Cylpebs.
3) Power plant:
Pulverizing coal into fine powder for boiler combustion in power plants.
Applications & Solutions

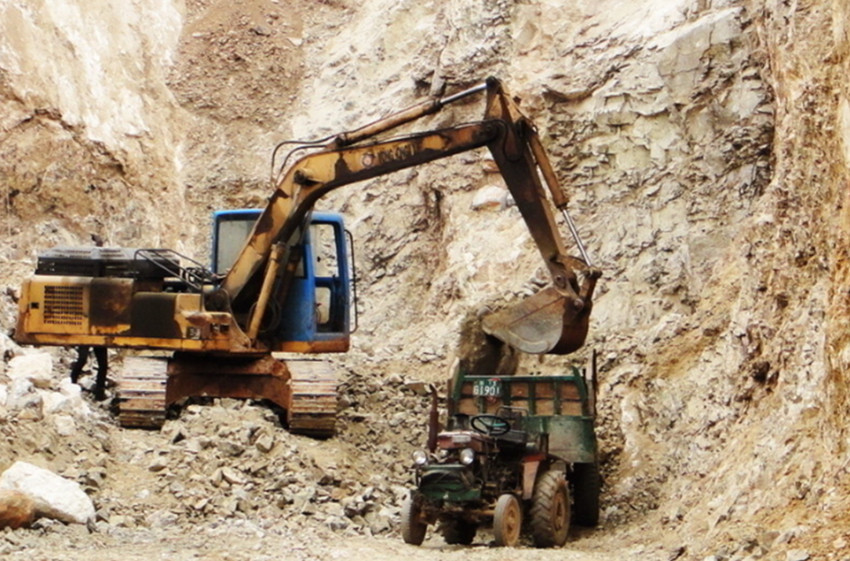

Mining and metallurgy
Effectively liberate a wide variety of minerals such as gold, silver, lead, zinc, copper, iron during the comminution process.
Cement Bulding Materials
Grinding limestone/cement clinker into fine powder for cement production.

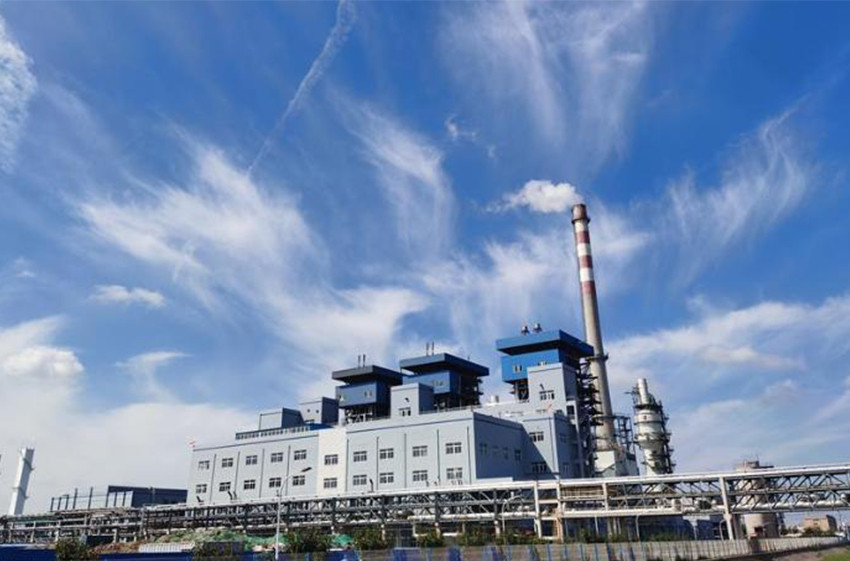

Power plant
Pulverizing coal into fine powder for boiler combustion in power plants.
Related Product
Grinding Cylpebs: OEM/ODM solutions & wholesale supply for global brands.Grinding Cylpebs are uniform hardness, non-breakable, resistant to grinding, high impact value, and high overall efficiency of the grinding machine.
Sodium Metasilicate Pentahydrate OEM/ODM solutions & wholesale: Used for Detergents and soap, textile processing, pulp and paper, elastomers

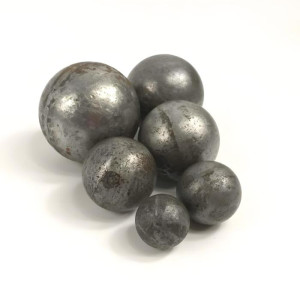

Forging (Rolling) Steel Balls: OEM/ODM solutions & wholesale supply for global brands.Forging (Rolling) Steel Balls are uniform hardness,
High Chrome Cast Grinding Balls - Premium wear-resistant grinding media for mining and cement industries. Our OEM/ODM solutions offer superior hardness (58-65 HRC) and toughness through optimized casting technology. Ideal for ball mills with 30% lower wear rate than standard balls. Global wholesale supply available.
FAQ
What is the core difference between cast steel forging and forged steel forging?
Different processing techniques
Cast steel forging is formed by pouring liquid metal into a mold and cooling it. The process includes steps such as smelting metal, pouring, and solidification. It is suitable for producing workpieces with complex shapes.
Forged steel forging is to cause plastic deformation of metal billets through pressure or hammering. The process includes steps such as heating, forming, and cooling. It is more suitable for producing high-strength workpieces.
Microstructure differences
Cast steel forging is formed by molten casting, and the metal molecular structure is relatively loose, with defects such as pores and inclusions, resulting in low mechanical properties.
Forged steel forging refines metal grains through plastic deformation, makes the structure denser, and significantly improves strength and toughness.
Different application scenarios
Cast steel forging is mostly used for mass production of complex-shaped workpieces (such as pipes and containers), but its pressure-bearing capacity is limited.
Forged steel forging is often used in situations with high load and high strength requirements (such as mechanical parts and valves), but the cost is relatively high.
Can we produce both cast grinding cylpebs and forging grinding cylpebs?
Yes, we both may offer
What is the casting process?
Cast grinding cylpebs usually adopts the die process, which is to heat the steel ingot or steel and put it into the mold to form the desired shape through pressure or impact force.
